X-Rays Expose a Hidden Medieval Library

Readers of this blog probably know that early-modern book bindings contain hidden treasure: fragments cut from medieval manuscripts, ranging from small snippets to full pages. The fragments were placed inside bindings to reinforce the bookblock and to provide support for the boards (see this post I wrote about it, and this one as well). This recycling process – plain-old slicing and dicing, really – was common practice, old-fashioned as handwritten books had become after the invention of print. In fact, medieval pages are found in as many as one in five bindings of printed books from the sixteenth and seventeenth centuries.  While the stowaways are normally hidden from our eyes, we sometimes get to meet them face to face when a binding is damaged (Fig. 1).

Leiden_UB_583_x_x
Fig. 1 – Leiden, University Library, 583, printed work (16th century) with medieval fragments inside (12th century) – Photo EK

But what to do with the thousands of fragments that are hidden from us in bindings that are still in pristine condition? This simple question became the drive behind the development of a method to examine fragments without removing or damaging the bindings. The method, which was presented this week, encompasses medieval book history (executed by me) and Macro X-ray Fluorescence Spectrometry (developed by Joris Dik, Delft University).This post gives you an exclusive look behind-the-scenes at how we managed to digitally leaf through invisible pages and gain access to a hidden library.

The plan

Leiden, University Library, fragment from BPL collection - Photo Julie Somers
Fig. 2 – Leiden, University Library, fragment from BPL collection – Photo Julie Somers – Source

In the spring of 2014 I was asked to write a short piece about ideas or approaches that could potentially change a scholarly discipline, even if they were not yet feasible.  I wrote about how we might be able to access a hidden medieval “library” if we were able to gain access to the thousands of manuscript fragments hidden in bindings (Fig. 2). Take their carriers– printed books whose bindings are enforced with the fragments – and give them a ride on the luggage belt at Schiphol Airport in Amsterdam. Let’s give them a bit of x-ray love, I suggested, half jokingly (here is the piece I wrote).

Then I remembered that a fellow member of The Young Academy, Joris Dik, developed an x-ray technology that enables researchers to look through paintings, in search of the earlier stages of the composition. Joris and I secured funding through The Young Academy to transport his Macro X-ray Fluorescence Spectrometry (or MA-XRF) scanner to Leiden University Library, an institution that greatly supported the unusual kind of research we were planning to undertake. We dubbed our endeavour the “Hidden Library” project and on October 4th, 2015 we started firing away at early-modern bindings in Leiden University Library.

The theory

Rembrandt, Old Man with a Beard (left) and self-portrait (right) hidden underneath
Fig. 3 – Rembrandt, Old Man with a Beard (left) and self-portrait (right) hidden underneath – Composed from images in this source

The Macro X-ray Fluorescence Spectrometry (MA-XRF) technology was developed by Joris Dik and his team at Delft University, in collaboration with industrial, academic and museum partners. The machine was designed in such a way that it could be transported to a museum in a few crates. There it would be used to show hidden paint layers in paintings by Rembrandt and other old masters. For example, in collaboration with partners in Antwerp Joris Dik successfully showed an unfinished self-portrait by Rembrandt, which was hidden underneath a painting of an old man (Fig. 3) – here is a more recent Rembrandt discovery. A thin beam of X-rays is used to scan the object, charting the presence and abundance of various elements below the surface. Theoretically, the technology ought to make it possible to show medieval inks as well, even when they are covered by a layer of parchment, paper or leather – the most common materials that hide medieval binding fragments from our eyes. But would it?

The practice

The MA-XRF-scanner developed by Joris Dik and his team at Delft University
Fig. 4 – The MA-XRF-scanner developed by Joris Dik and his team at Delft University – Photo EK

The answer to this question came very quickly after we hit the switch: yes. However, interdisciplinary research often comes with complications. Yes, we see text, but no, we could not read it. And so a series of experiments were undertaken by the team (which also included two research assistants, Anna Käyhkö and Jorien Duivenvoorden). For one thing, we learned that the distance between the head that released the x-ray beam and the fragment in the binding was key to our success (Fig. 5). A device was built that allowed us to adjust this distance between head and fragment with half a millimeter (the image was taken before it was completed).

The head of the MA-XRF scanner working at the 16th-century binding of Leiden, University Library, 617 F 19
Fig. 5 – The head of the MA-XRF scanner working at the 16th-century binding of Leiden, University Library, 617 F 19

Another variable we had to master was the length of time needed to scan the fragment. The head was moving back and forth in front of the scanner (Fig. 4), but how slow did this movement need to be? How long should the scanner scan before moving on to the next bit? When was it clear enough for me to read? Ultimately these nuts were cracked, meaning we were able to see a fragment through a binding. In fact, we managed to do it in such a way that the text was clear, legible and datable, as the following examples show (Figs. 6-8).

Example 1: fragment underneath paper
Fig. 6 – Leiden, University Library, 603 G 11 (16th-century): 15th-century fragment visible underneath paper cover – Photo Anna Käyhkö
Example 2: fragment inside a parchment binding
Fig. 7 – Leiden, University Library, 617 F 19 (16th century): 15th-century fragment seen inside a parchment binding – Photo Anna Käyhkö
Example 3: large fragment inside parchment binding
Fig. 8 – Leiden, University Library, 180 E 18: large fragment inside parchment binding – Photo Anna Käyhkö

We ultimately scanned around twenty different early printed books. This seems a modest amount, but the main aim of the Hidden Library project was to discover if we could indeed expose bindings to x-rays and reveal the medieval fragments inside. In that respect the project was a success.

Challenges for the future
Before we start thinking that this method will enable us, starting right now, to trace thousands of new fragments, we are forced to take a reality check. First of all, the second variable – of how long a binding needed to be scanned in order to reveal its hidden treasure – remains a practical road block between science and unveiling a medieval source that has never been tapped into systematically. The images you see in Fig. 6-8 were each produced with over 24 hours of scanning time. A shorter period makes fragments visible, but not legible, as seen in Fig. 9 (which shows the same fragment as in Fig. 6, yet exposed significantly shorter).

Leiden, University Library, 603 G 11
Fig. 9 – Leiden, University Library, 603 G 11, short exposure

Secondly, another problem is to distinguish between the text on the front and back of the fragment. Depending on the composition of the ink, it may or may not be possible to separate the two sides of a leaf. Iron, for example, will be returned from both sides of a leaf, producing a peculiar image like the one seen in Fig. 10. One has to look for elements that only show the side closest to the beam, which in this case is calcium. Consequently, this particular fragment is seen in its most optimal form when only calcium is shown, as is the case in Fig. 6.

Leiden, University Library, 603 G 11, iron
Fig. 10 – Leiden, University Library, 603 G 11, iron returns text from both sides of leaf at same time

So yes, the new technique is amazing in that it shows us fragments – medieval text – that we could otherwise never see because they are hidden behind a layer of parchment or paper. However, the method is not yet perfect in that it comes with challenges that need to be overcome, of which the long exposure time is the most significant. To stay within the analogy of this post, while the door to a virtual medieval library has been opened by the MA-XRF technique, we need to find a way to enter and take a look around as quickly and efficiently as we would in a real library.

Credits
The interdisciplinary research introduced here was executed by Joris Dik (Delft University) and Erik Kwakkel (Leiden University) in close collaboration with the University Library Leiden. Fundamental in our research was the help of the library’s conservator, Karin Scheper (who is, by the way, a guest blogger for medievalbooks). Two research assistants worked with us for the duration of the project: Anna Käyhkö and Jorien Duivenvoorden. The project was financed by De Jonge Akademie (The Young Academy), a branch of the Koninklijke Nederlandse Academie van Wetenschappen (The Royal Dutch Academy of Arts and Sciences). Two formal publications, providing a more detailed description of the research and its results, are planned. Various national Dutch news outlets have paid attention to the project (newspaper, radio [start at 9.50 min] and television [start at 20 sec.]).

Texting in Medieval Times

We all do it a few times per day: shooting a friend a text message with our phones. Doing so has become routine and we don’t really think about it: just grab your device, hold it up, and type a few words quickly and on the fly. Both the speed and short lifespan of text messages are responsible for its most peculiar features: they are written in a special language of short words and a high volume of abbreviations, and they come with the built-in understanding that there will likely be typos included. Interestingly, this hurried and cursory manner of communicating was quite common in medieval times, while its roots can be traced back to Antiquity. This post shows how people sent each other short messages before the invention of electricity and the phone: hastily, cheaply and with a modest amount of attention. “My soldiers have run out of beer, please send some!”

Antiquity

British Museum, 1986,1001.64, aka Tab. Vindol. II.291 (dated to 97-103 CE)
Fig. 1 – British Museum, 1986,1001.64, aka Tab. Vindol. II.291 (dated to 97-103 CE) – Source

The idea for this post was sparked by an image of a wooden writing tablet that was written almost two thousand years ago (Fig. 1: I encountered it in a news letter from calligrapher Patricia Lovett). The tablet was dug up some time ago in a Roman army camp just south of Hadrian’s wall, in the north of England. Some 400 wood tablets with correspondence were found in the house of the commander, Flavius Cerealis, prefect of the Ninth Cohort. Remarkably, the tablets are only 1-3 mm thick, about the size of a modern postcard (more about the fortress here and about the correspondence here).

The one in Fig. 1 is particularly charming and personal. It invites the commander’s wife, Sulpicia Lepidina, to her sister’s birthday party. The latter writes: “On 11 September, sister, for the day of the celebration of my birthday, I give you a warm invitation to make sure that you come to us, to make the day more enjoyable for me by your arrival. […] Give my greetings to your Cerialis. My Aelius and my little son send him their greetings. I shall expect you sister. Farewell, sister my dearest soul, as I hope to prosper, and hail.” (Source) Astonishingly, with this tiny scrap of no more than 223 mm wide we have in our hands a two-millennium-old text message sent between two sisters, concerning a matter as trivial as a birthday. As scholars have remarked, this is one of the oldest surviving specimens of a woman’s handwriting, which makes the tiny scrap even more memorable.

Wooden shaft with nib excavated at Vindolanda
Fig. 2 – Wooden shaft with nib excavated at Vindolanda (late Antique) – Source

Produced with wooden pens with stuck-on nibs (Fig. 2), the 400 surviving text messages also include correspondence from the field, likely sent by courier.  The sub-commander Masculus writes to Flavius Cerealis, his superior: “Please, my lord, give instructions as to what you want us to have done tomorrow. Are we to return with the standard to the crossroads all together or [only half of us. Also,] my fellow soldiers have no beer. Please order some to be sent.” (Tab. Vindol. III 628, more here). This great (oldest-surviving?) order for beer, no doubt meant to be thrown out, survives because the earth preserved the wood on which it was written.

Middle Ages

Leiden, Bibliotheca Thysiana, Archive found in book binding (15th century)
Fig. 3 – Leiden, Bibliotheca Thysiana, Inv. Nr. 2200 H, Archive found in book binding (15th century) – Photo EK

Similar short logistical messages survive from medieval times, although their manner of survival is different. Fig. 3 shows waste material discovered in a book binding by students of Leiden’s Book and Digital Media Studies MA-program, for which I teach. A total of 132 paper slips were pressed together to form a board made out of “cardboard”. Quite unusual is the origins of the material: the recycling bin of a small court near Heidelberg, belonging to an unknown duke. The material is not your usual archival material – charters, accounts and whatnot – but mostly concerns ephemeral material that is mostly lost from medieval times: “yellow sticky notes” that were sent from one servant to another, such as the one seen in Fig. 4. The scrap was written by the chamberlain (“hofmeister”) and it requests the amount of six guilders from the duke, whose servant is the recipient of the message.

Fig. 4 – Leiden, Bibliotheca Thysiana, Inv. Nr. 2200 H, Chamberlain note from 1461 (front)
Leiden, Bibliotheca Thysiana, Chamberlain note from 1461 (back)
Fig. 5 – Leiden, Bibliotheca Thysiana, Inv. Nr. 2200 H, Chamberlain note from 1461 (back) – Photo Giulio Menna

The back of the message (Fig. 5) also adds to our understanding of this hidden world of medieval text messaging. It shows to whom the note needed to be delivered (“kamermeister”) but also that it was folded into a small package for transportation (note the two folds). Another interesting note is a request to purchase some wild roses in Heidelberg, while making sure “to include some that are still in the bud.” (More about this case in this blog post.) Many of these slips were produced from recycled charters or account books. The messages were either written on their back (verso), or on a strip that was cut from their (blank) margin, as still visible in Fig. 5 (note the half words next to the word “kamermeister”). Why use a good sheet of paper if the message would be deleted immediately after use?

Time Capsule
Both the Vindolanda tablets and the medieval scraps that emerged from an early-modern binding form a time capsule with everyday conversations that do not normally survive from the past. We meet every-day people doing every-day things. Their manner of expressing themselves is untainted in that they do not try to be literary or witty, but merely convey a short message. They are part of a type of writing that was produced for short-term use and, ultimately, destruction. In that sense the messages from Antiquity and medieval times are not unlike the class notes I blogged about in the past, scribbled down by students and young children (Fig. 6) – more about notes and the bark sample in this post.

Birch bark strip used by the student Onfim, dated 1240-1260
Fig. 6 – Birch bark strip used by the student Onfim, dated 1240-1260 – Source, blogmore

The parallel with the birch bark notepad is striking for another reason as well: it confirms that individuals in the past selected cheap materials for items that were meant for short use only. In that sense it makes perfect sense that the “text messages” discussed above were written on things that were just lying around: thin pieces of wood and slips of waste in a recycling bin.

While the caches from Vindolanda and Leiden are remarkable, there are actually plenty of time capsules still out there. The average archive in Europe will contain several boxes filled with medieval waste material, which usually include a wide range of recycled “transitory” material, such as letters and notes (Fig. 7).

Maastricht, Archives, Box 384 (medieval waste)
Fig. 7 – Maastricht, Archives, Box 384 (medieval waste) – Photo EK

If the paper and parchment slips are the medieval equivalent of our modern text messages, written in a cursory fashion and forgotten about almost immediately after receipt, these archival boxes are like the memory chips of our phones. They allow us to read conversations deleted hundreds of years ago, connecting us to real medieval individuals doing real medieval things.

Postscriptum: as pointed out by Sarah Bond (@SarahEBond), similar to the genre discussed in this post is the ostrakon tradition from Antiquity, whereby short texts (quotes, notes and drafts) were written on pieces of broken pottery. Sarah forwarded this specimen with a quote from Homer; other examples are found in this Tumblr post I wrote some time ago.

Destroying Medieval Books – And Why That’s Useful

Old furniture, broken cups, worn-out shoes and stinky mattresses: we don’t think twice about throwing things out that we don’t need anymore. And books? Here things are a bit different. Apart from the fact that you may find it morally abject to throw out a book, that noble carrier of ideas, the object retains its economic value much longer than many other man-made things. Old and worn books will usually have a second – third, fourth or fifth – life in them, for example on the shelves of the secondhand bookstore. Indeed, old age may even increase their value dramatically, as visitors of book auctions will know.

The final curtain call of any book, including medieval ones, is when its content is no longer deemed correct, valid, or useful. Between the end of the Middle Ages and the nineteenth century thousands and thousands of medieval manuscripts were torn apart, ripped to pieces, boiled, burned, and stripped for parts. While these atrocities were undertaken to various ends, the ultimate explanation for this literary genocide is the same: the old-fashioned parchment book had run its course. It was forced to bow and leave the stage, where the printed book was now stealing the show. This post sheds light on a dark chapter of wilful destruction – which came with surprising benefits for the culprits.

Culprit 1: The Bookbinder

15th-century fragment inside bookbinding (Rolduc Abbey library) - Photo EK
Fig. 1 – 15th-century fragment inside bookbinding (Rolduc Abbey library) – Photo EK

If you have followed my blogs – both here and on Tumblr – you known I have a soft spot for so-called manuscript “fragments”. Ranging from small snippets no larger than your pinky to full leaves, they were the product of the knives of bookbinders. When Gutenberg invented moving type, handwritten books became old-fashioned overnight. All over Europe they subsequently became the victims of recycling at the hands of binders, who cut them into pieces and pasted them inside bookbindings, where they often still remain. And so we encounter a little strip from a medieval Dutch Bible glued to the inside of a sixteenth-century binding (Fig. 1); and snippets from a medieval Hebrew text peeping out of a damaged binding (pic at the top). These examples show how medieval books were mutilated and stripped for parts, like cars at a scrap yard. Thousands of them disappeared this way – though fortunately not without a trace.

Culprit 2: The Tailor

Copenhagen, Den Arnamagnæanske Samling AM 666 b 4to (13th century)
Fig. 2 – Copenhagen, Arnamagnæanske Samling AM 666 b 4to (13th century)

The strength and durability of parchment made medieval pages ideal for supporting bookbindings. Tailors loved to recycle the material for the same reason. The pages in Fig. 2 form the lining of a bishop’s mitre, to which a layer of cloth was subsequently pasted. The practice is observed in other mitres as well (two examples are mentioned in the comments at the bottom of this blog). What’s really remarkable about the lining seen above is not so much that the poor bishop had a bunch of hidden medieval pages on his head, but that they were cut from a Norwegian translation of Old French love poetry (so-called lais). Lovers were chasing each other through dark corridors, maidens were frolicking in the fields, knights were butchering each other over nothing. All the while the oblivious bishop was performing the rites of the Holy Mass.

Dress made in Cistercian abbey of Wienhausen, Germany
Fig. 3 – Dress made in Cistercian abbey of Wienhausen, Germany – Source

There are other examples where tailors (I’m putting mitre makers under this label for convenience) used leaves from medieval manuscripts to “stiffen” the cloth. Dr. Lähnemann, chair of German Studies at Newcastle University, has identified several such cloth items with hidden content in her work. An unusual case is seen in Fig. 3: a dress made in the late fifteenth century by Cistercian nuns in Wienhausen, Germany. It was not meant to be worn by people, however, but to be draped around a statue in the convent. It’s not unlike doll’s clothes you pick up in the toy store today, except that the remains of a Latin text are hidden inside.

Culprit 3: The Scribe
And then there were the scribes. Surrounded by used books and with a pen knife in their hand, makers of medieval books were bound to do some damage. There are several ways in which old pages could be put to good use in the monastic scriptorium or library. You can make bookmarks out of them, as I have shown in a recent post (here). A more hidden way of recycling concerns the so-called palimpsest, where the words were scraped off a page after which a new text was copied down on it. In the early Middle Ages entire books were palimpsested. There was a definite upside to this practice from the scribe’s point of view. It gave him, without effort, a pile of parchment to fill with something new: it allowed him to cut corners without having to cut corners, so to speak (Fig. 4).

Wolfenbüttel, Herzog August Bibliothek, Guelf. 64 Weiss. (9th century)
Fig. 4 – Wolfenbüttel, Herzog August Bibliothek, Guelf. 64 Weiss. (9th century) – Source

There was a downside as well. As seen in Fig. 4, the scraped away lower text never fully disappeared from sight: it tended to pop up unexpectedly throughout the new book. While the text at the forefront (the upper text) of this spectacular manuscript dates from the eight century, what’s hidden underneath it is much older. To produce this manuscript a fifth-century copy of Paul to the Romans was palimpsested, as well as parts of a sixth-century Gospel Book in Greek uncial letters (the blue text that is shining through).

The last words: the joys of destruction
While it is a thrill to look for bits and pieces of medieval text inside a bookbinding or below the surface of a page, destroying books – especially medieval ones – is bad. However, the cases of recycling shown here also point out how very useful the second life of the manuscript could be. To medieval scribes and post-medieval binders and tailors it must have been a joy to have piles of recyclable parchment books at their disposal. Moreover, to speak as an optimist, their slicing and dicing is proving most useful. Thanks to the destructive practices in the past we at least have some pages or strips left from given manuscripts – which would otherwise have completely disappeared. Seeing a few lines is often enough to identify a text and determine when and where it was copied. In this way fragments become blips on the radar: they add, often significantly, to the study of medieval literary and scholarly culture. While destroying medieval books is bad, it is most useful to have their sorry remains.

Note – More about fragments in bookbindings in this and this post. Take a closer look at a palimpsest here. More on using manuscripts in textiles here.

Hugging a Medieval Book

Book historians tend to compare features of the medieval book to body parts. Thus the manuscript’s “head” (top edge) is connected to its “spine” (the back) via the “shoulder” (the area where board meets spine). There are even terms that compare a medieval book’s physical features to human activities or conditions. A large letter with a lively figure inside is called a “gymnastic initial”, while line ruling that is nearly invisible is “blind”. I could go on and explain how other, seemingly unrelated, objects have been used in bookish terminology (the “diaper pattern” is my favourite), but you get my drift. This post takes this projection phenomenon a step further. It shows how one particular feature of the medieval binding eerily resembles a body part, not just in appearance but even in function: the clasp (Fig. 1).

Arm and hand

Leiden, Universiteitsbibliotheek, BPL MS 2579 (15th century)
Fig. 1 – Leiden, Universiteitsbibliotheek, BPL MS 2579 (15th century) – Photo EK

Medieval makers of manuscripts paid just as much attention to closing the book as they did to opening it. In order to preserve the organic pages, which were often made of parchment, it was necessary to keep the volume tightly closed when it was not used. Not only did this keep moisture out, but parchment also has a natural tendency to buckle, especially when handled at room temperature. In fact, parchment pages curl up with so much force that the wooden boards would be pushed open were it not for a smart device designed to keep the lid on: the clasp.

The clasp is like an arm that extends from the one wooden board to the other. Indeed, I find it hard not think of clasps as hugging arms that embrace the leaves, safeguarding them from the harsh reality of medieval book use. Appropriately, the primary purpose of the clasp was to protect the pages. They generated the pressure needed to keep the pages flat, while producing a firm object that could withstand every-day use in a medieval library – like falling off a desk or a shelf. At the end of the arm a tiny “hand” locks into an extension – we could call it a “handle bar” – as clearly visible in Fig. 1. How great that some book binders played with the image of a hand grabbing onto the opposite clasp, as this eighteenth century example shows (Fig. 2).

Book clasp, 18th century (?) -

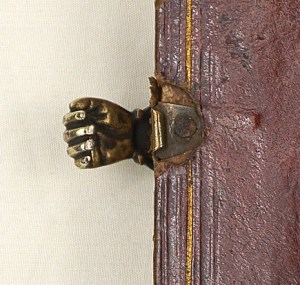

Fig. 2 – Book clasp in shape of hand, 18th century (?) – Source Daniel Crouch Rare Books

Generally, two clasps were able to contain the force issued by the buckling parchment of a book. However, it was important to get it right as a bookbinder. When the distance between the one end of the arm (the “arm pit”) and the handle bar was too large, there was insufficient pressure. By contrast, if the distance was too little, the book did not close. Medieval manuscripts that have lost their clasps (by far the majority) show what happens to the bookblock when the pressure was too low: unhappy pages with a wavy pattern appeared (Fig. 3).

Leiden, Universiteitsbibliotheek, BPL MS 96 (14th century)

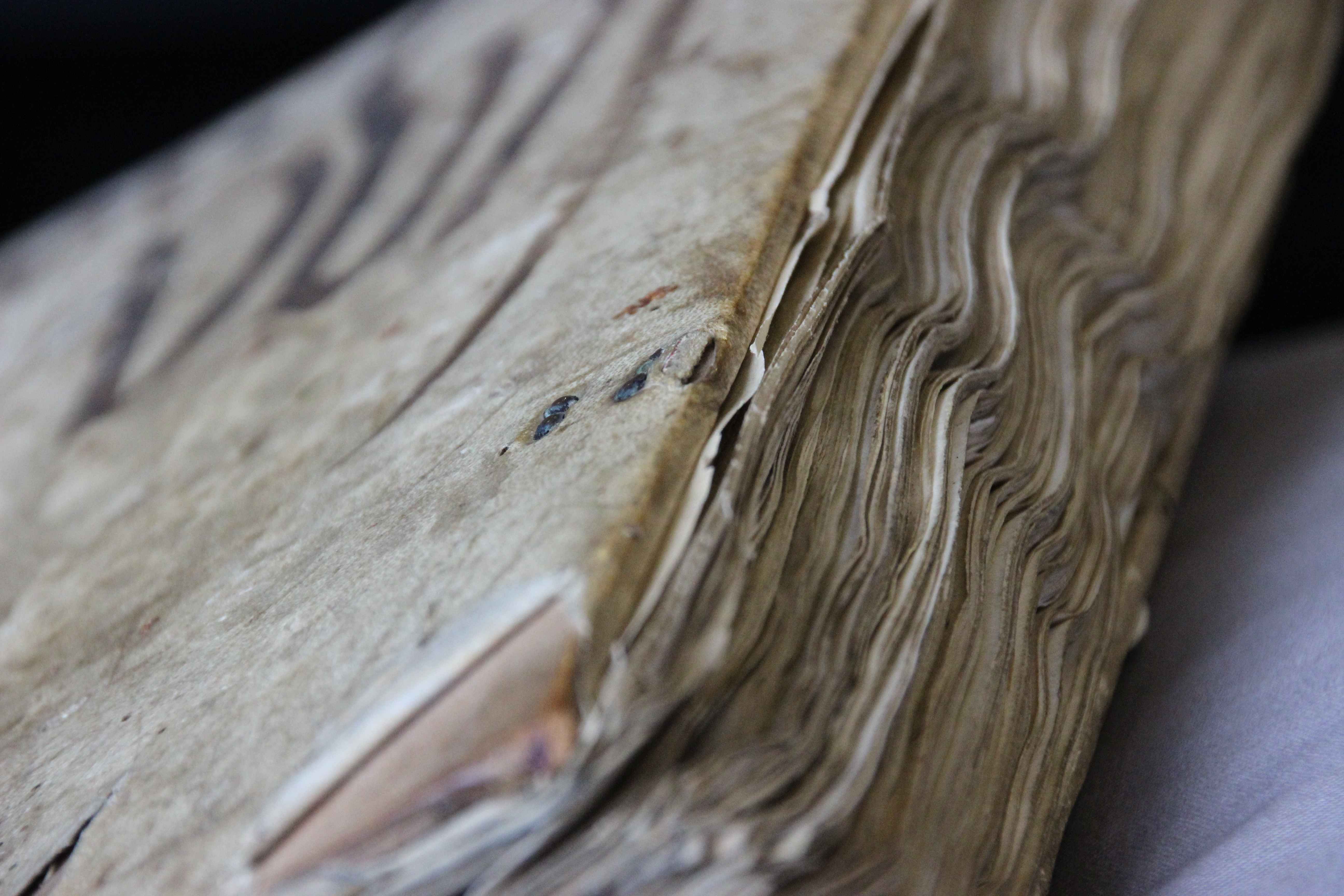

Fig. 3 – Leiden, Universiteitsbibliotheek, BPL MS 96 (14th century) – Photo EK



Exotic arms
Some readers preferred exotic clasps. A particularly remarkable specimen is seen in Fig. 4. The book it helps to close is tiny, no larger than an iPhone. Made c. 1500, it was designed for the road: it concerns a portable Book of Hours (or prayer book) that was carried around by a pilgrim on his religious pilgrimage. The clasp holding it closed is a skull carved out of bone. The theme is fitting for a pilgrim seeking redemption, finding his way along the dusty roads of medieval Europe. Every time he sat down to open his book he was confronted with his future, which looked rather grim: Memento mori, remember that you will die one day. Better smarten up and keep on going!

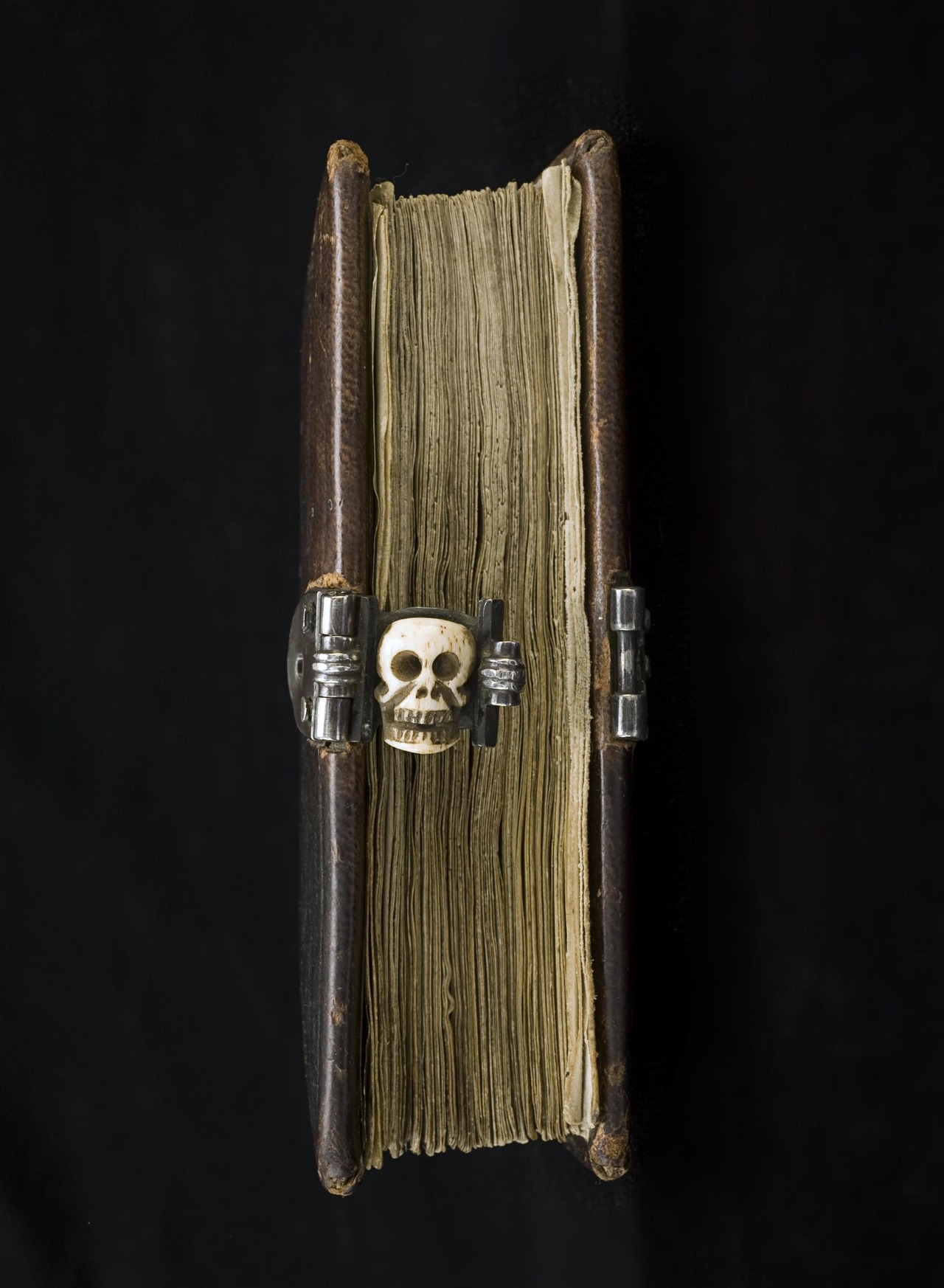

Stockholm, National Library, MS A 233 (c. 1500)
Fig. 4 – Stockholm, National Library, MS A 233 (c. 1500) – Source

The exoticness of clasps can also be connected to their number in stead of their shape. Clasps are a must for a peculiar binding known as dos-à-dos (or “back-to-back”). While such bindings usually hold two books bound together at their backs (hence the name), the National Library of Sweden owns a unique variant that contains no less than six books (Fig. 5). They are all devotional texts printed in Germany during the 1550s and 1570s (including Martin Luther, Der kleine Catechismus) and each one is closed with its own tiny clasp. A book with six arms and hands: it is quite the display of craftsmanship.

Stockholm, National Library

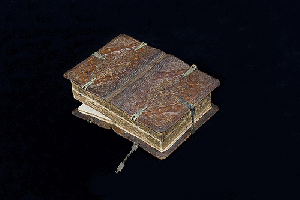

Fig. 5 – Stockholm, National Library – Source of photos, GIF by EK (source)

The last word: feet
If clasps can be compared to arms, another feature of the bookbinding must be called “feet”. During the later Middle Ages it became customary to store manuscripts on lecterns. In lectern libraries, which were found in monastic houses and churches, readers consulted books on uncomfortable benches. The libraries often had a semi-public function, with outsiders walking in and out to consult books. To facilitate such use – and to make sure no books were unlawfully removed –  the objects were usually chained to the lecterns (Fig. 7).

The chained library in Zutphen, the Netherlands (De Librije)

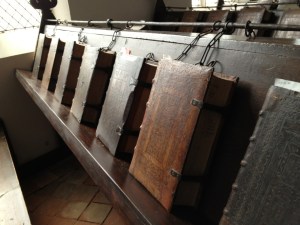

Fig. 7 – The chained library in Zutphen, the Netherlands (De Librije) – Photo EK

Books in lectern libraries were not read on a flat surface (such as a desk), but erect – the objects were resting, after all, on nearly vertical stands. This kind of use came with a challenge: the shuffling that inevitably happened when the book was read, wore out the lower edge of the binding. More importantly, since the medieval book block was flush with the binding, the constant contact with the lectern as the reader flipped through the book could easily damage the page. A simple tool was invented to prevent such damage: “feet” – tiny pieces of brass that hoisted the book up and made it hover, as it were (Fig. 8). The feet that are attached to bindings are often shiny. It shows just how much the book was used – and how much damage was prevented by the attached feet (Fig. 9).

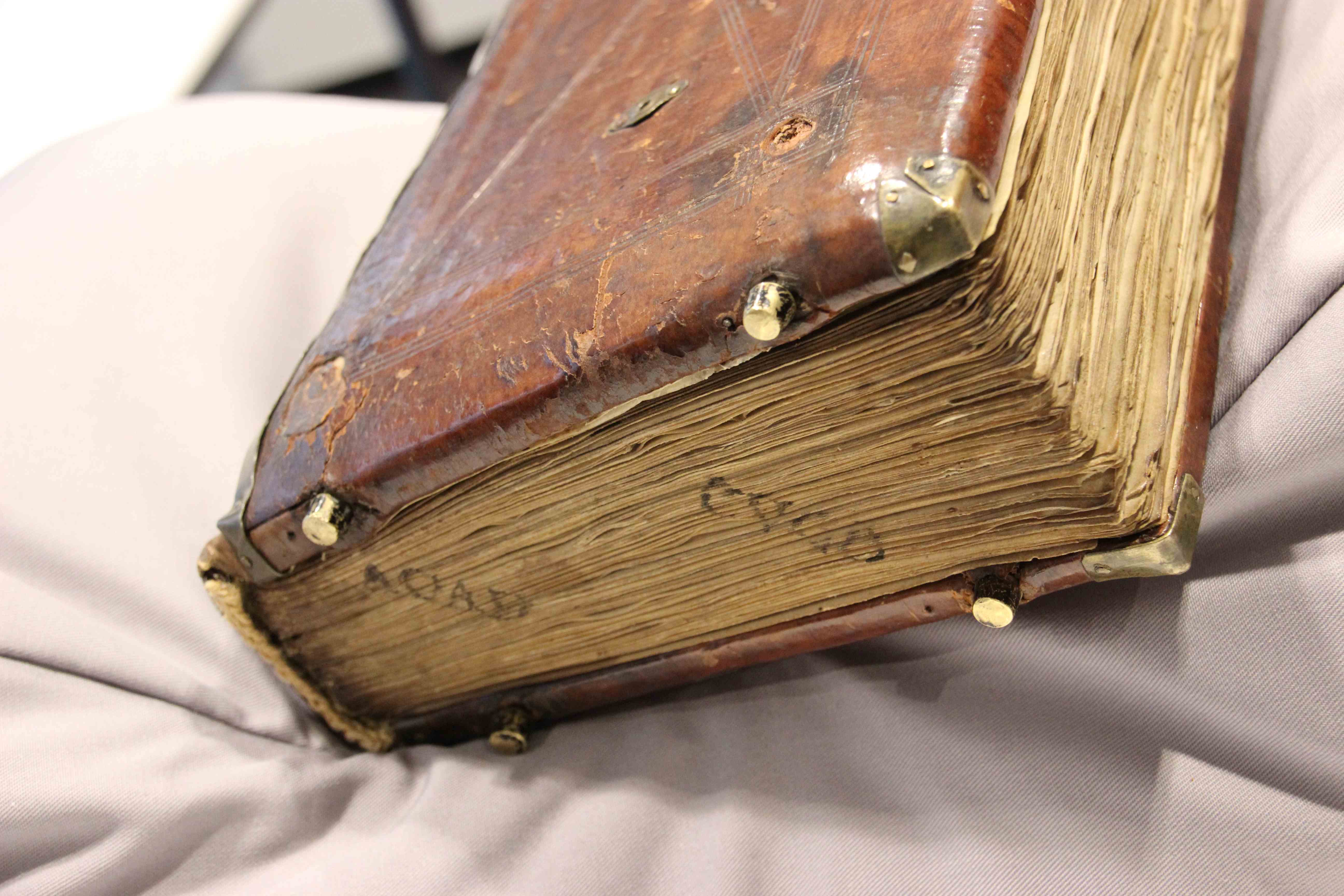

Leiden, Universiteitsbibliotheek, BUR MS Q 1 (11th century)
Fig. 8 – Leiden, Universiteitsbibliotheek, BUR MS Q 1 (11th century) – Photo EK
Leiden_UB_BPL_67
Fig. 9 – Leiden, Universiteitsbibliotheek, BPL MS 67 (9th century) – Photo EK

There is something very attractive about these body parts. They show just how much bookbinders and readers were in tune with the needs of the book as an object. They packaged them so that they could withstand rough consultation, while their designs also left room for a certain amount of fun – as the hand-clasp and perhaps even the skull-clasp shows. The hug given by these strong arms protected the book’s most precious cargo, the text, both from accidents in the medieval library and, as much as possible, from the inevitable decay of time.

A Hidden Medieval Archive Surfaces

On my Tumblr I recently posted two entries devoted to a remarkable discovery made in the Book History class I am co-teaching with Paul Hoftijzer for the Book and Digital Media Studies programme at Leiden University. It concerns 132 notes, letters and receipts from an unidentified court in the Rhine region, jotted on little slips of paper. They were hidden inside the binding of a book printed in 1577, which is part of the Bibliotheca Thysiana, a seventeenth-century library in Leiden, established by Johannes Thysius (d. 1653). The gems were discovered by during our class while students were systematically going through the binding remains in the library. The tiny slips made headlines in Dutch and Belgian printed media and featured in a popular news show on Dutch national radio. Why are they so special?

The hidden archive and the bookbinding it came from
The hidden archive and the bookbinding it came from

The slips are first of all remarkable simply because such small written objects rarely survive from medieval society. Due to their limited dimensions they tend to fall in between the proverbial cracks of the transmission process. There are few places where such objects can slumber undisturbed for centuries. Their low survival rate is also connected, however, to the fact that they were meant to be thrown out after use. In fact, this is what actually happened, although through the process an early-modern bookbinder unintentionally saved them. When a printed book from 1577 was to be fitted with its binding, the binder grabbed the 132 paper slips from his equivalent of a blue recycling bin and moulded them, likely wet, into cardboard boards. This is when their long journey to our modern period started, as stowaways hitchhiking on sixteenth-century printed matter. Thysius bought the volume second-hand and had likely no idea of the hidden treasures it contained.

Title page of book that contained the archive
Title page of the book that contained the archive

The collection also stands out because of its sheer size. As I briefly explained in an earlier blog, recycling medieval written material was a frequent occurrence in the workshop of early-modern (as well as medieval) binders. However, the very high volume of leaves the binder used is exceptional. What is so striking about the paper slips is that they tell us everyday things that we normally rarely hear about in historical sources. Take the note from 4 December 1461 sent to a chamberlain by a steward, asking “Could you please send me 6 guilders, because we need it?” It concerns internal mail from within the unknown household, likely delivered by a servant: the back reveals a fold and the designation “chamberlain”. We can almost hear him dash through the house, note in hand. A number of slips are receipts from payments: for work done by a carpenter, for the purchase of wheat for the horses of guests, and alike. Messages like these bring us as close to real medieval society as you can get. They are the medieval voices we normally don’t hear, that tell the story of what happened “on the ground”.

Note from stewart to chamberlain (front)
Note from steward to chamberlain (front)
Note from stewart to chamberlain (back)
Note from steward to chamberlain (back)

My favorite slip is a tiny note written by (or on behalf of) Count Philip (d. 1508), who held court near the river Rhine. On 31 May 1486 he sent his servant to Heidelberg with a most charming request. “Could you please get me some wild roses?”, he writes, adding “But make sure to also include some that are not yet flowering.” It is a small miracle that we still have this 527-year-old paper slip, which is the equivalent of our yellow sticky note. (How many post-it notes do you keep after use?) Judging from the back, where we encounter part of a seal and an address, the note was cut from a letter. In other words, the paper used for this request was recycled twice: once in 1486, when the note was written; and once in 1577, when it was made into a board for a bookbinding.

Note from 1461 requesting for wild roses
Note from 1486 requesting for wild roses

That such a twice-recycled object still exists and that it provides such detailed information about real people asking for real things, turns the archive into both a valuable medieval source and an exciting object to work with. Holding the request for wild roses in your hand really makes you think about how the flowers will have been used, who looked at them, and what conversations were held in the room where they were placed. Students will continue to hunt for fragments in Bibliotheca Thysiana and one of them will write his MA thesis on the hidden archive. The voices it contains will hopefully be allowed to speak more and louder.

Note: This post was originally written for, and posted on, my project blog MedievalFragments.

Life Beyond the Grave: The Leiden Apocalypse Fragments

A while ago, this blog devoted a post to medieval manuscript fragments, parts of sheets that were cut up and used to support bookbindings. New fragments appear on the radar frequently. Just yesterday, for example, new fragments of Old French verse texts emerged at the University of St Andrews. Leiden University Library, my go-to place for looking at manuscripts, has hundreds of them, in various languages. Four seemingly insignificant strips, which I studied a while back, can be used to show just how important it is to take fragments seriously and to have a look at them when you study a text tradition. The strips in question, now sealed in plastic, once belonged to a Middle Dutch copy of the last book of the Bible, the Book of Revelation or Apocalypse. Apart from being disseminated as part of the Bible, the book also has a separate transmission, as is the case in Latin and other vernaculars. However, only six such manuscripts survive in Middle Dutch. This immediately elevates the Leiden fragments, which bear shelfmark BPL 2454 (13) and can be dated to 1350-75, to an important – seventh – witness of the tradition.

Leiden, Universiteitsbibliotheek, MS BPL 2454 (13), fragment 1

The oldest surviving manuscript, kept in the St Petersburg Library of Sciences, can be dated to 1325-50. The Flemish book historian Willem de Vreese found it in a pile of Middle Dutch manuscripts that were left under a dripping pipe in a forgotten part of the library. He was given permission to defrost the chunk of ice and “liberate” the twenty or so medieval books – like Han Solo being freed from carbonite. The best known manuscript, however, is Paris, Bibliothèque Nationale de France, MS néerlandais 3, made around 1400 in Flanders, most likely in Bruges.

Paris, BnF, MS néerl. 3, f. 12r

The Paris manuscript is of great interest because it is the only one that is illuminated. It contains twenty-two breathtaking full-page miniatures, considered prime examples of “pre-Eyckian” realism. Equally remarkable is the manuscript’s layout: each book opening contains a miniature on the right page, with on the facing page the corresponding text – a chapter from the Apocalypse. Text and image thus form a diptych. For the Apocalypse tradition this is very unusual. In fact, it is found in only one other manuscript, a Latin copy made in Tours shortly after 800 (now Trier, Stadtbibliothek MS 31).

Trier, Stadtbibliothek, MS 31 (c. 800)

Back to the Leiden fragments. While not much of the original manuscript survives (the smallest of the four strips measures 41×12 mm, the largest 16x107mm), they provide crucial information about the decoration program of the Paris manuscript. The strips connect to Paris in two ways. First, they are illuminated as well, setting the Leiden and Paris copies apart from the other five. More notably, however, the fragments seem to present another instance of the unusual diptych tradition: the page out of which the strips were cut contained on the back the text of Chapter 12, while the front side held an image pertaining to Chapter 11. Certain elements from f. 12r of the Paris manuscript, presenting the image to Chapter 11, can be clearly made out in Leiden. Note for example how the crawling figure attacked by devils in the lower part of the Paris page (displayed above) is found on one of the Leiden strips as well – moreover, the man with his eyes closed is the same one as the individual being decapitated in Paris.

BPL 2454 (13), fragment 4

We can learn quite a bit from these small snippets. Most importantly, the Leiden fragments suggest that the decoration program in Paris is not unique. The diptych presentation, it seems, may have been more widespread in Middle Dutch vernacular. Also, the diptych design not only made use of high-quality miniatures, but apparently also accommodated plain colour drawings, as on the Leiden fragments, which were much cheaper. Readers who purchased such books thus seem to have been given a choice. Given that Leiden is the oldest one, predating Paris by several decades, the Middle Dutch diptych tradition, modest as it may have been, could potentially have had a long life, one that at least goes back to the early second half of the fourteenth century. Most importantly for us fragment lovers, however, is that the tiny Apocalypse remains show there is life beyond the grave, like the message of the text itself.

Note: This post was originally written for, and posted on, my project blog MedievalFragments.

Secrets of the Heart: Exploring the Dark Side of the Manuscript

In the heart of the medieval book, where the quires are united and meet the binding, great secrets loom in the dark. This is the place where we can read things in the manuscript that cannot be read on its pages: whether it is composite and in what manner it is composite. The question of whether a collection of texts was copied continuously or whether it was formed by binding together independently produced units, is of the utmost importance for understanding the object’s genesis and for “getting” the texts as a collection. Providing an answer to this query is difficult, however, because it depends on facts buried deep inside the quire construction of the book – which may, moreover, not be obtained without upsetting librarians. Nevertheless, one must persevere, treading as carefully as possible, because exploring the dark side of the manuscript pays off.

Composite manuscript: The booklets give themselves away by their varying dimensions.

The first thing to do is assessing whether a manuscript is composite or not. Determining that an object is not composite is easy enough. A collection of texts copied continuously is usually written by the same scribe. Mind you, in such case the book may still be composite, for the scribe may have united individual units he copied in the past. However, if the writing style (duct) and ink color are the same throughout, and especially if all catchwords are in place and in the same style, the text collection was likely copied in one “go”. There is one trap, hidden in plain sight: a book produced by multiple scribes may still be copied continuously. Sometimes a scribe stopped working on a project and another took over. The individuals usually tried to hide such transitions by “breaking” at the very end of a page: the first stopped after completing the last line on the recto side of the leaf, the second started with the first line on verso. Less frequently, the switch may also occur in the middle of the page; or even in the middle of a line. This intriguing scenario can usually not be explained. Was the first scribe suddenly overcome with tiredness? Had the abbey beer of the previous night gotten to him? Did he have a blind date with the rubricator?

Team of scribes: hand switch in the middle of a sentence (lines 8/9).

The domain of composite books is much darker – and more slippery. This is in large part due to the fact that such objects can be composite in different ways. They may consist, for example, of units that were designed and created specifically to be bound together, while in other cases such units were merely united because of their similar dimensions. In some composite books all individual units were in use by themselves before they were bound together, while in others only some of them were, or none at all. Consequently, any two individual units of a composite book (and the texts they hold!) may have very different relations to one another: either they are new neighbors or their kinship predates the volume. Descriptions in manuscript catalogues usually do not clarify such relations. The better ones will mention that a manuscript consists of multiple units, but that is often the end of it. Take the following examples, all taken from existing catalogues: “Latin works on science and mathematics assembled from several 13th-century booklets,” “A miscellany of five separate manuscripts,” “A set of five volumes” and “Three independent manuscripts bound together.” The volumes are composite, but how? How are we to understand “assembled” in the first description? And how meaningful is the use of different terms in these examples (“booklets”, “volumes” and “independent manuscripts”)?

Ultimately these descriptions show that bringing the genesis of a manuscript into play in your research normally requires you to go into the field and observe the object “in the flesh”. There is much to gain when you do. For example, the genesis of the book may tell us something about the availability of exemplars – and thus, perhaps, where we may situate the scribe. A scribe may have had all the exemplars he needed in front of him when he started to copy. Then again, he may not, for example because his hunt for exemplars had been only partly successful. Availability is a key consideration for the manuscript to become composite or not. After all, the scribe could wait until he had all the material he needed and copy everything at once. The result would be a full manuscript if he copied a lot of texts, or a booklet if the planned collection was modest in scope. If there was much to copy but there was a supply problem, he could decide to copy the collection in “installments”. The result would be a series of booklets, all in the same hand, bound together in a single volume. As he was waiting for new material to become available, the scribe could start using the booklets he had already copied, adding new installments as he got his hands on more exemplars. This is a different scenario again, one where some pages within a composite book (consisting of several parts copied by one hand) show wear and tear.

Copy and exemplar in a depiction of Jean Miélot as a scribe.

While the examples provided here may suggest that variation is endless, there are, in fact, only a limited number of ways to produce a composite book. Obviously, knowing the possible scenarios helps to deduce in what way a manuscript in front of you is composite. The first step, however, is to realize that the manuscript you are looking at, even when it is copied by one hand throughout, may be the product of extensive tweaking over a long period of time.

About composite books in general:

P.R. Robinson, “A Self-Contained Unit in Composite Manuscripts,” Codicologica 3: Essais typologiques, ed. A. Gruys and J.P. Gumbert (Leiden: Brill, 1980), 46-69.

About the different types of composite manuscripts and the formation of text collections:

Erik Kwakkel, “Late-Medieval Text Collections: A Codicological Typology based on Single-Author Manuscripts,” in Author, Reader, Book: Medieval Authorship in Theory and Practice, ed. Stephen Partridge and Erik Kwakkel (Toronto: University of Toronto Press, 2012), 56-79.

Note: This post was originally written for, and posted on, my project blog MedievalFragments.
